LF-70
Mid-Speed Paper Cup Forming Machine

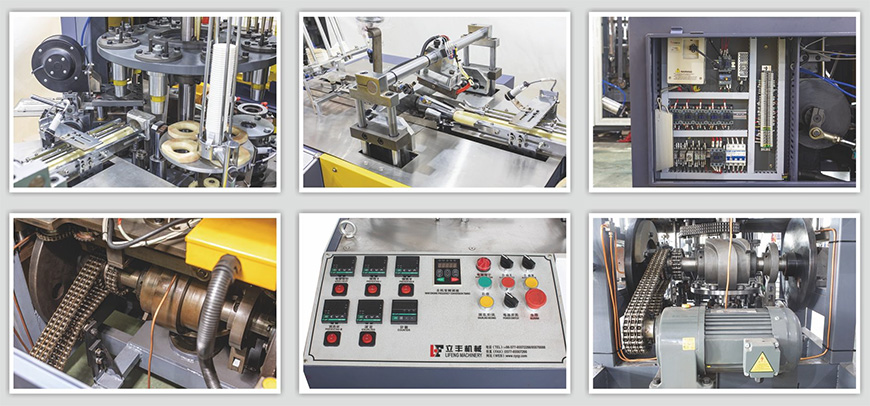

LF-70 paper cup machine is an automatic paper cup forming machine,through automatic paper feeding.copper heater side seal, cup top lubrication, automatic bottom paper feeding, bottom heater, bottom knurling and curling, it can make cups single PE for hot drinks.
Advantage:
1.Instead of old gear box system, machine use open cam and chain system,makes driving more accurate, faster, and more stable.
2.Machine use directly bottom feeding system, makes machine structure more simple and easy to use by normal worker.
2.Machine use directly bottom feeding system, makes machine structure more simple and easy to use by normal worker.
3.Parts adopt standardization production; Equipment base is machining by large CNC machine installed precision positioning hole, make the parts of the equipment installation more standardized, good versatility and interchangeability,easy to maintenance.
4.Simple electrical panel and electrical part design makes people can run machine easily and machine has a reasonable price.No need extra compressor.
| HS Code | 8441309000 |
| Model | LF-70 |
| Paper Cup Size | 2-12oz |
| Raw Material | Single PE |
| Speed | 60-70 pcs/min |
| Suitable Paper Weight | 170- 300g/m² |
| Voltage Supply | 380V，50HZ |
| General Power | 4.5KW |
| Net Weight | 1 800kgs |
| Measurement(mm) | Machine:2300×1200×1800 |
| Collecting table:L:850mm;W:950mm;H:1700mm |
