DW-50
Automatic Salad Bowl Forming Machine

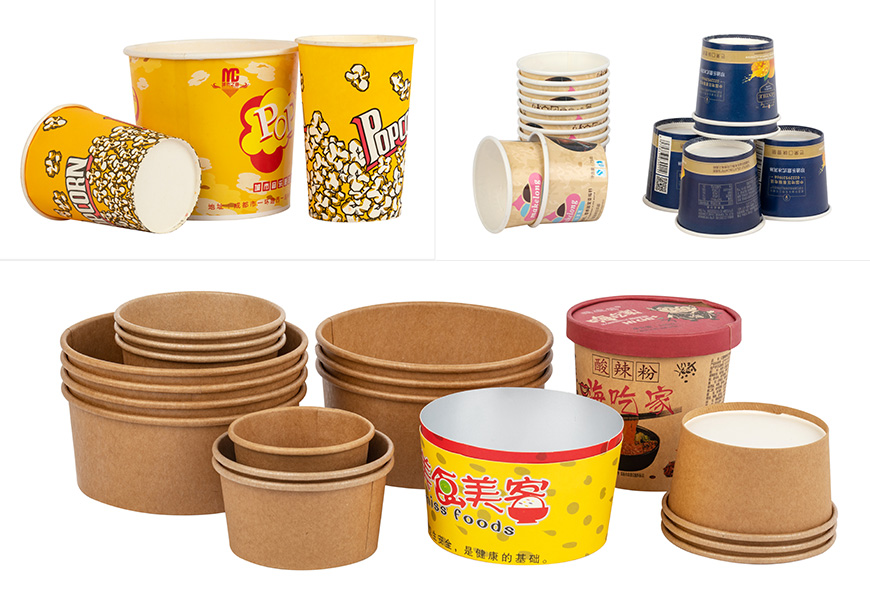

DW-50 Full automatic salad bowl forming machine is a machine that developed on the technique of Korea machine.It has the function of automatic paper feeding, preheating, sealing, oil injection, bottom cutting, heating, knurling, curling, and so on. It can alarm via sensor checking,counting and collecting itself.DW-50 paper bowl machine is an equipment both for single and double PE coated paper bowl, making soup bowls and noodles bowl etc.
| HS Code | 8441309000 |
| Model | DW-50 |
| The Machine Includes: Finished Bowl Collect System | |
| Paper Bowl Size | Maximum bottom diameter 165mm, maximum top diameter 185mm |
| Maximum height 80mm, angle 4-8degree | |
| Raw Material | One-side or two-side PE coated paper(Singe PE or Double PE coated paper) |
| Speed | 40-60pcs/min |
| Speed of 20 hours stable running per day | |
| Suitable Paper Weight | 170-350gsm |
| Voltage Supply | 380V 50hz 3-phase *1f user's voltage supply is different, please inform US in advance. |
| Working Air Source | Air pressure 0.6-0.8Mpa, 0.4m³/min User should buy Air Compressor |
| General Power | 11KW |
| Net Weight | 3500kgs |
| Measurement (mm) | 2650×1600×1800 |
| Cup Side Sealing | EVERGREEN Ultrasonic |
